Software
We’ll be using OCaml in CS 164, which requires only a text editor and a terminal. You’re free to use whatever text editor or IDE you prefer, but we will only support the recommended setup below; we will be unable to provide guidance on any other setups if they are not working correctly.
Note for students with limited internet access: If internet access will be an ongoing issue during the semester, you can try the (not officially supported) local approach from previous years.
Recommended Setup
We will exclusively use the CS 164 instructional machines for this course. The following steps describe how to connect to the instructional machines. The instructional machines contain all the OCaml command-line tools and packages you will need for this course. This is a relatively new setup for this course, so if you encounter any issues, please let us know.
Tip: If you’re on campus, you'll need to be connected to eduroam to access the instructional machines. If you’re off campus (or on any WiFi network that is not eduroam), you’ll need to use the bSecure VPN to access the instructional machines. You can find instructions for setting up the bSecure VPN here.
Tip: If you ever get "Connection refused" or "Connection timeout" error while trying to connect to the instructional machines, check the status of the hive servers at hivemind.eecs.berkeley.edu. All students have access to the following servers:
- ashby.cs.berkeley.edu
- derby.cs.berkeley.edu
- cedar.cs.berkeley.edu
- cory.eecs.berkeley.edu
- gilman.cs.berkeley.edu
- oxford.cs.berkeley.edu
- solano.cs.berkeley.edu
- hive‹n›.cs.berkeley.edu (where n is in the range 1-20, inclusive).
- If you have not done so already, please create a student instructional account for CS 164.
-
You should receive an email with your instructional account username
and password. Now, try connecting to a hive machine via SSH. Go into a
terminal and run:
(You can use any of the servers listed above). Make sure to replace thessh cs164-???@cory.eecs.berkeley.edu
???
with your username. -
Optional:
If you would like to connect to the Hive machines on your computer
without typing in your password every time, follow these steps. (Credit to the CS61C documentation.)
-
Open your terminal. Check if you have existing SSH keys by
running:
If you get a "No such file" error, generate a key pair by running:ls ~/.ssh/id_*
ssh-keygen -t ed25519 -f ~/.ssh/id_ed25519
-
Copy your public key to the instructional account with the
following command:
If that doesn't work, your computer might not have ssh-copy-id installed. Try this instead:ssh-copy-id cs164-???@cory.eecs.berkeley.edu
cat ~/.ssh/id_ed25519.pub |
ssh cs164-???@cory.eecs.berkeley.edu
'cat >> ~/.ssh/authorized_keys' -
Try SSHing into the instructional servers now! Run the following
command in your terminal:
ssh cs164-???@cory.eecs.berkeley.edu
-
Open your terminal. Check if you have existing SSH keys by
running:
-
Optional:
If typing out
cs164-???@cory.eecs.berkeley.edu
is too long, create a host alias with the steps below! Once you create a SSH host alias, you will be able to connect to the CS164 instructional machines withssh cs164
or evenssh ILoveCompilers
. (Credit to the CS61C documentation.)- Follow the steps above to connect to the instructional machines without a password.
-
Open
~/.ssh/config
in your favorite text editor. -
At the end of the file, add the following lines:
Host cs164
HostName cory.eecs.berkeley.edu
Port 22
User cs164-???
IdentityFile ~/.ssh/id_ed25519
IdentitiesOnly yes
ServerAliveInterval 60
cs164
toILoveCompilers
or anything you would like! Make sure that you replace the "User" fromcs164-???
to your actual username. - You should now be able to SSH into the instructional servers with your host alias.
-
Optional:
If you would like to use VS Code for development, you can
follow the steps below for remote development. The official docs are
here, but
we've also abridged them below.
- Install Visual Studio Code.
- Install the Remote — SSH Extension .
-

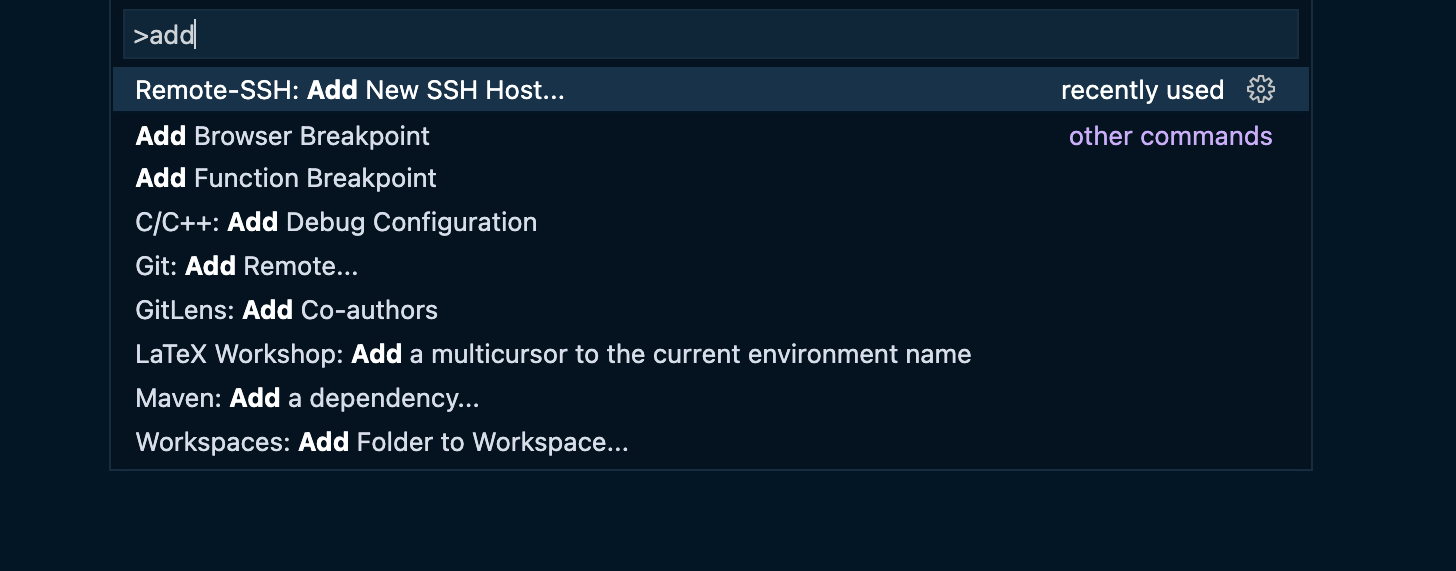

Open Visual Studio Code and press Control-Shift-P (or
Command-Shift-P on a Mac) to open the Command Palette. Search for
Add New SSH Host....

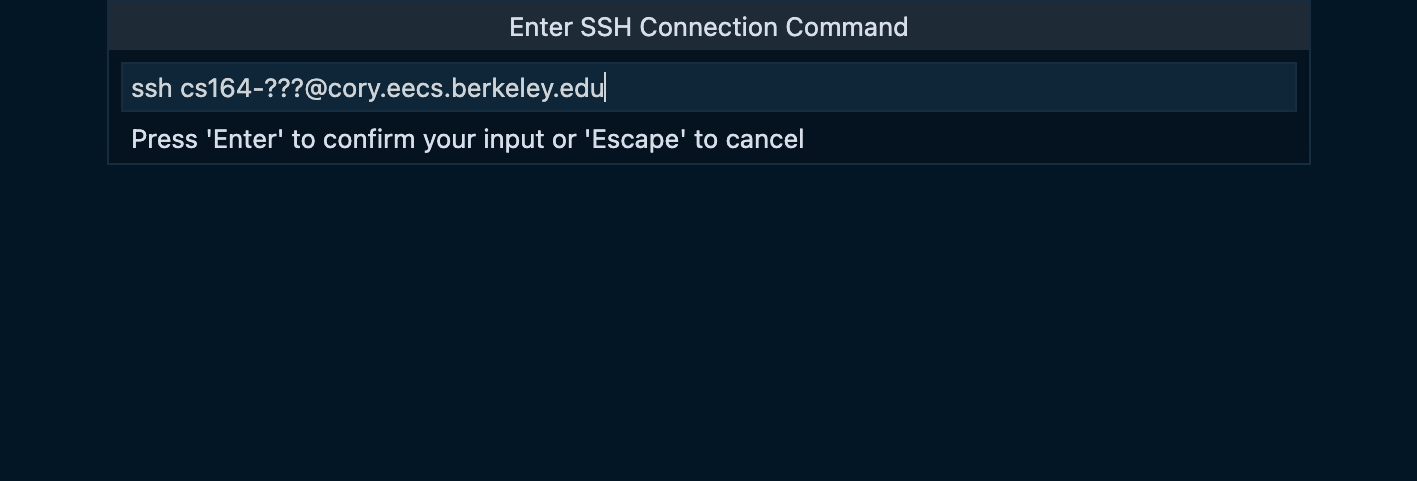

Type in
ssh cs164-???@cory.eecs.berkeley.edu
and press Enter. You may be prompted to enter in your instructional machine password. -

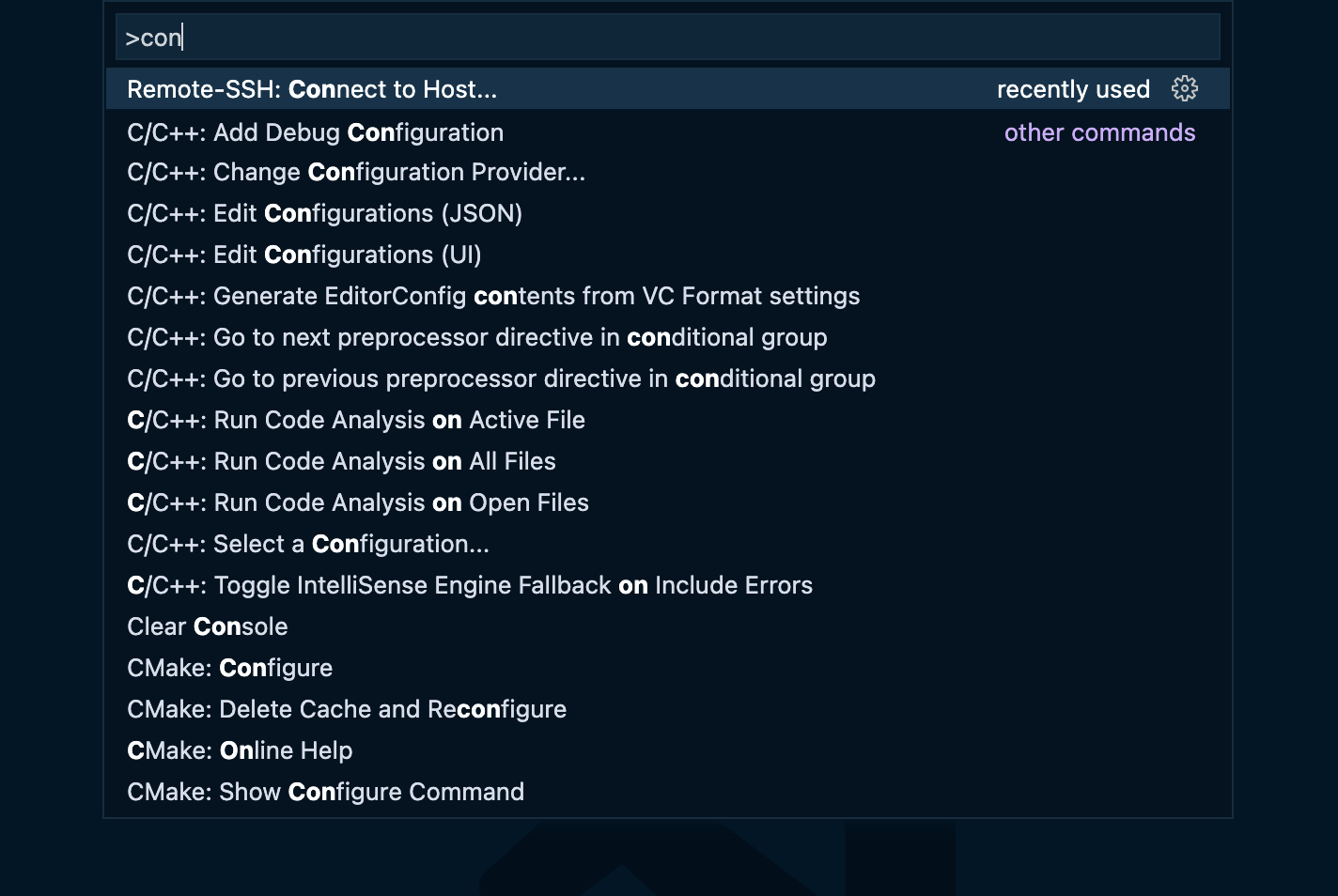

Press Control-Shift-P (or Command-Shift-P on a Mac) again to open
the Command Palette. Select

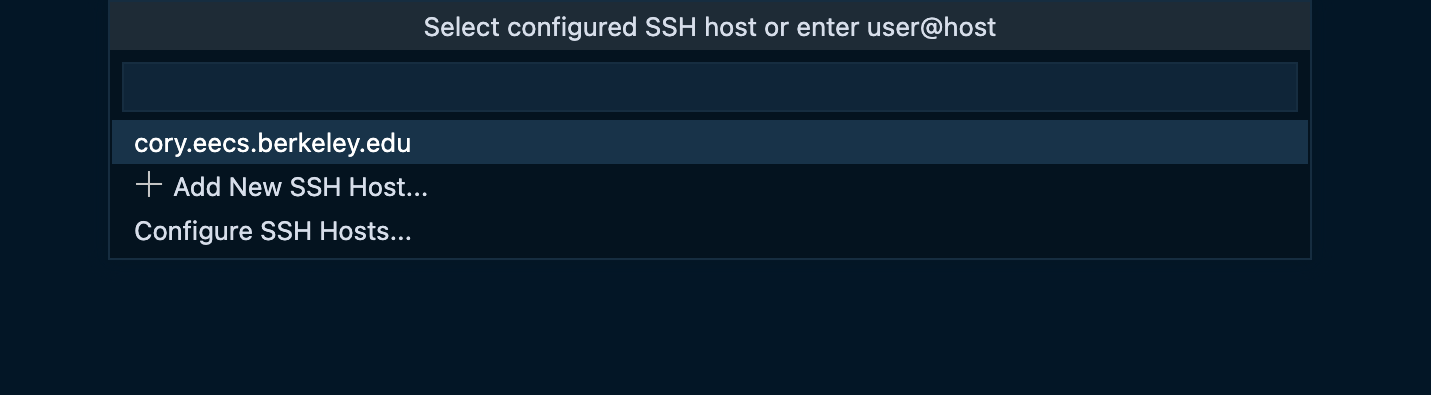

Remote-SSH: Connect to Host....
Type in the ssh hostname (e.g.
cs164-???@cory.eecs.berkeley.edu
). If you've set up a host alias, it might come up as an option as well. - After a moment, you'll be in a new window. Make sure you're connected by checking the bottom left corner of the window: there should be a little green bar with the words "SSH: cory.eecs.berkeley.edu".
- In the new window, install the OCaml Platform extension. This new window also won't have any of the VS Code extensions you've already installed locally, so make sure to install any extensions you need for writing code.
- You can now open any folder using File > Open... .
Connecting to GitHub from the Instructional Machines
To pull from and push to your homework repositories on GitHub, you’ll need to set up an SSH key on the instructional machine and add the public key to your GitHub account. Follow these steps:
-
While logged into the instructional machine, run the following:
This will generate a public / private key pair on the instructional machine.ssh-keygen -t ed25519 -f ~/.ssh/id_ed25519
-
Copy this public key to your clipboard. You can do this by running:
cat ~/.ssh/id_ed25519.pub
- Add the public key to your GitHub account by going to your account SSH settings. The title of your SSH keypair can be “CS 164 Instructional Machine” (or any other name that helps you identify this key).
Submitting Homework
Homework should be submitted on Gradescope. When you have completed your work on the instructional machine, the simplest way to submit your homework is to:
- Push your final code to your homework repository.
-

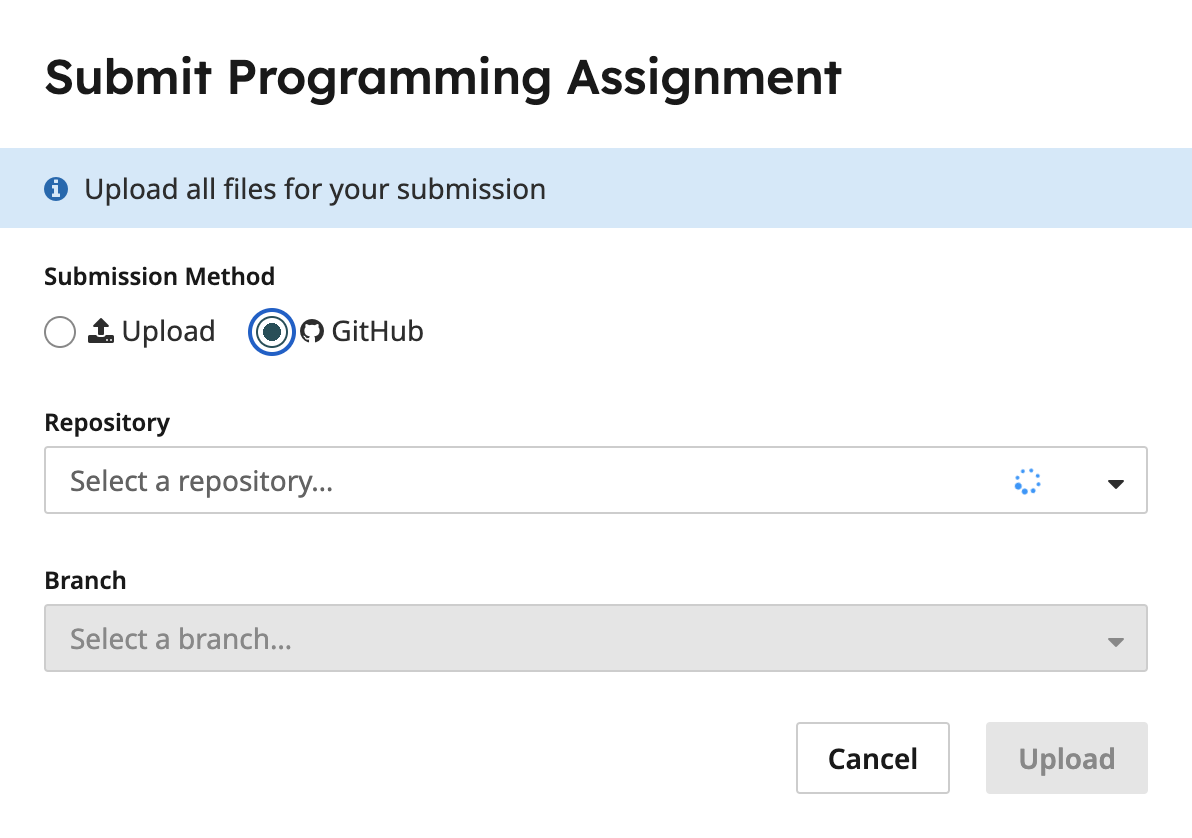

Select the GitHub option in the Gradescope submission interface.
- Choose the repository and branch to submit.

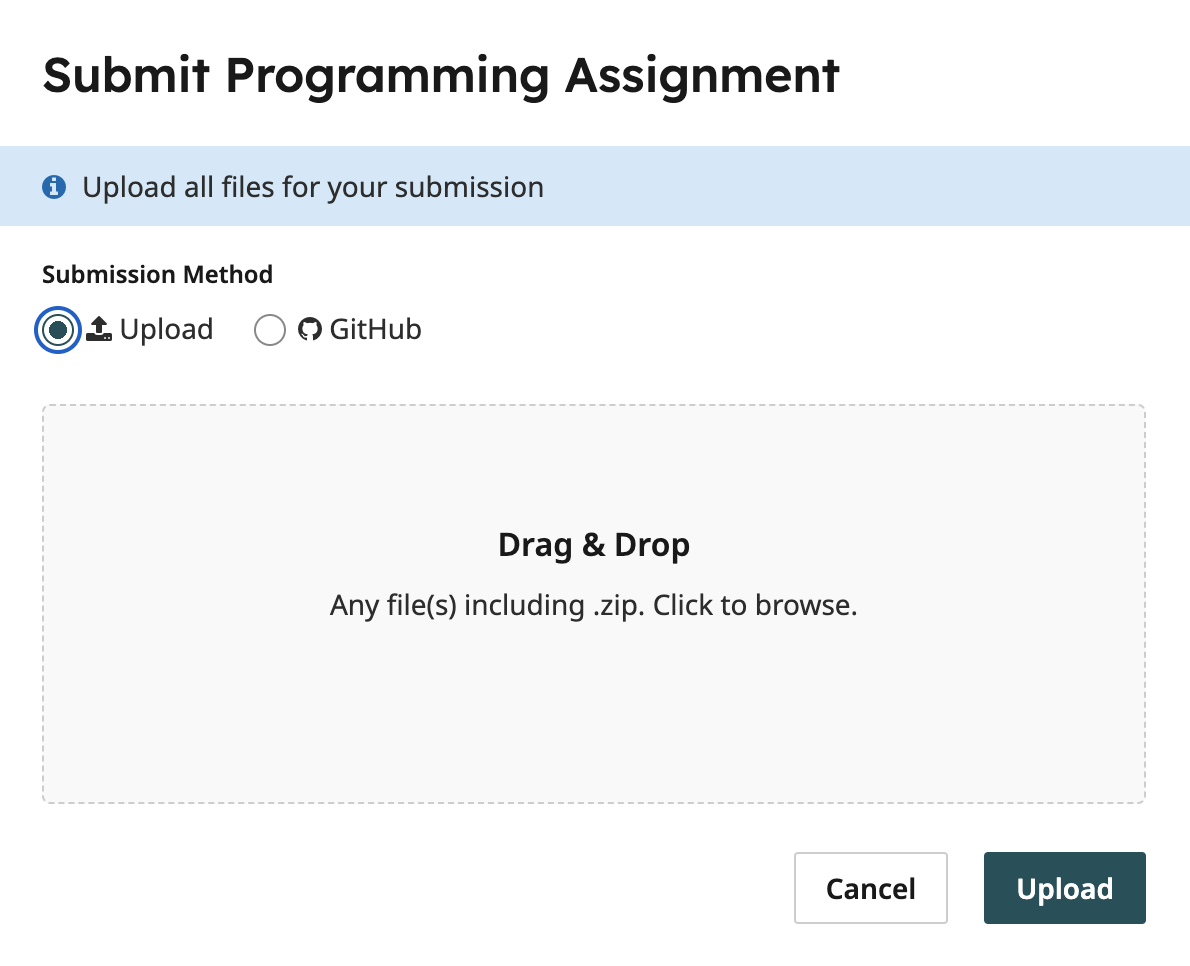

If you prefer, you can also submit a ZIP file containing your submission. To do this:
-

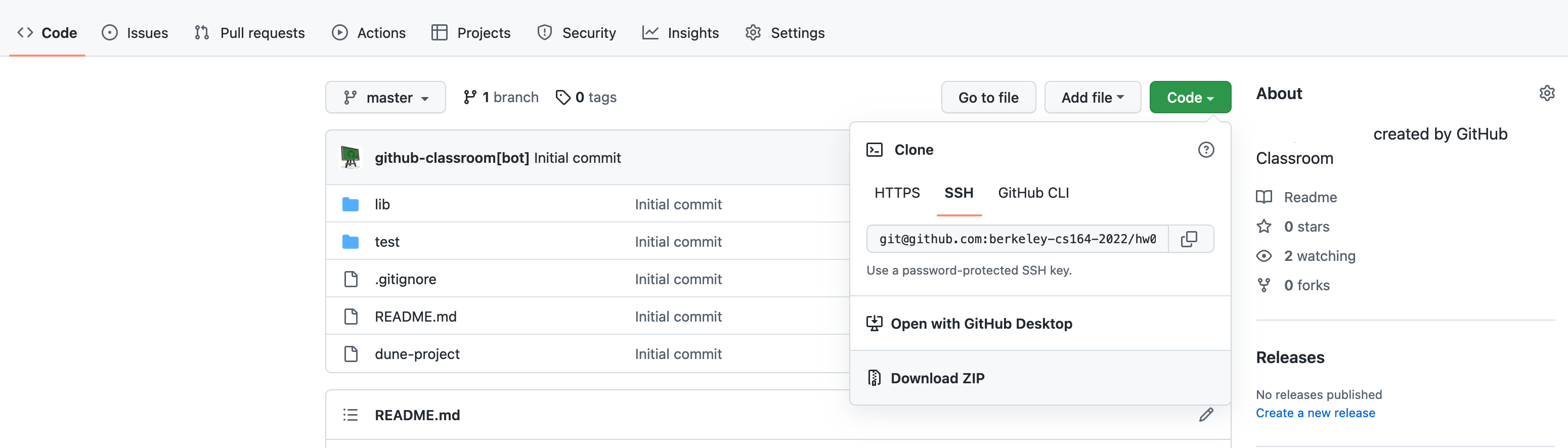

Download your homework repository as a
.zip
from GitHub. -
Submit your
.zip
on Gradescope.
